What Sea Level Rise Looks Like

I've been doing a lot of reading of late, dredging up all of the peer-reviewed scientific literature on coastal climate change relevant to the outer coast of the Olympic Peninsula. There's not a lot, but there is some. People that spend there time thinking about and planning for climate change locally make much of tectonic uplift trends around here, which thus far have out-paced sea level rise on parts of the Olympic Peninsula (Neah Bay in particular). As a results, Neah Bay has a relative sea level rise pattern that looks like this:



Local sea level is effectively falling in Neah Bay, largely because the current sea level rise rate, estimated to be about 2mm/yr, is easily outpaced by uplift, estimated at about 4mm/year at Neah Bay. By contrast check out Seattle's relative sea level trend:



Uplift in Seattle is thought to be minimal, and the trend in local sea level measured there has been tentatively attributed almost entirely to rise in the true sea level due primarily to warming ocean water (the "thermosteric" component) and the melting of land-based ice.

The outer coast of the Olympic Peninsula is not entirely off the hook though, for a variety of reasons. First, many models of sea level rise suggest an acceleration in the true sea level rise rate during the coming century. My analysis of the available literature suggests to me that true regional sea level rise on the order of 1 m is quite likely by 2100, whereas extrapolation of the current estimated sea level rise rate to 2100 would suggest a rise of only about 20cm. Also, there is some evidence (though the literature isn't fully in agreement on this point) that waves, and particularly the storm-generated extreme waves, in the North Pacific are getting larger. The larger the wave, the higher the "run-up" pushed up on the beach, and the greater the likelihood of flooding. Finally, there is general agreement that storm tracks in the North Pacific will change over time (and there is some evidence that this is already happening), which could potentially alter our seasonal pattern of sea level driven by local winds and sea level pressure. All three of these processes could conspire to bring the influence of sea level rise to us much quicker than is suggested just by extrapolating the current relative sea level curves into the future. And the key point? The evidence suggests that we can't rely on relatively rapid tectonic uplift to save us, even in Neah Bay where the uplift rate is greatest.

Today's Peninsula Daily News ran a picture of beach at La Push today, and said that the school in La Push was closed yesterday and other actions were taken due to the threat of coastal flooding. This is what sea level rise looks like here. Its not inundation - its an increased risk of coastal flooding. Fortunately in this case there was no reported flooding.

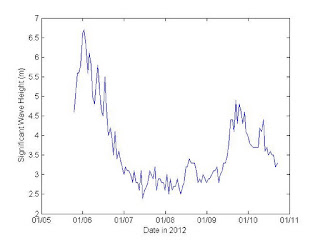

The recipe in this case was two-part. First, a dose of parigean high tides ("king" tides) generated by the combination of the monthly high "spring" tides (when the moon is closest to the earth in its orbit) and the full moon (when the moon, sun and Earth are all in alignment). This special combination happens two times a year - once in the winter and again in summer. The second component was large waves. Here are the wave measurements made by a buoy off-shore of Aberdeen, WA:




Yesterday's 3 to 3.5 m significant wave heights are big. Here is the web cam shot from right now, with offshore wave heights on the order of 3m:



In this image waves are breaking a good distance offshore, but they still aren't really that big for La Push in the winter. You can see that on Friday significant wave heights crested 6m offshore- about 20 feet. Probably the biggest fortunate turn of events is that the "non-tidal residual" (the difference between the actual water level and the water level predicted from astronomical forcing alone) has been effectively zero at La Push over the last few days. Note the green line in these water level data collected in La Push:




You can make a case that this is unusual for the winter on the coast. Usually water levels are elevated above what would be predicted due to astronomical tidal forcing due to winds that pile water up against the coast and low sea level pressure. Together they can raise the local water level by 1 meter or more - and that may have been plenty to send water over the beach berm in La Push yesterday. Its a game of probability - bringing all of these different processes together. Sea level rise just slowly raises the probability that everything will line up and send water over the berm.
